Product details

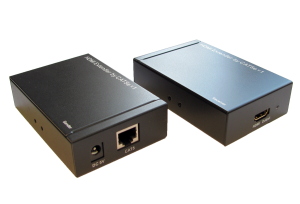

4k HDMI Over Ethernet Extender with IR remote control using HDBaseT technology, enables an HDMI display to be located up to 70 metres away from the source device. It can conveniently be extended using only one Cat5e / 6 / 6a / 7 cable, which is cost-effective.
It not only supports HDMI (3D, Deep Colour) but also Ultra HD 4k x 2k and is HDCP 2.2 compatible. It is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality.
Long distance transmission - up to 70 metres
Using CAT5e / CAT6
-
60m for up to 1080P @ 60Hz 36bpp
-
35m for 1080p @ 60Hz 48bpp
-
1080P @ 60Hz 3D
-
4kx2k @ 30Hz
Using CAT6A / CAT7
-
70m for up to 1080P @ 60Hz 36bpp
-
40m for 1080P @ 60Hz 48bpp
-
1080P @ 60Hz 3D
-
4kx2k @ 30Hz
Features
-
Extends the distance between HDMI source and HDMI display
-
Implements HDBaseT extension technology using only one Cat 5e / 6 / 6a / 7 cable to connect the transmitter and receiver
-
HDMI (3D, Deep Colour, 4kx2k)
-
Supports HDCP 2.2
-
Extends Infra Red remote control signals
-
Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
-
Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
-
Supports up to 340MHz bandwidth for high performance video
-
Signaling rates up to 3.4 Gbits
-
Supports Dolby True HD and DTS HD Master Audio
-
Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)
-
Support 20-60kHz wide frequency devices and Bi-directional IR transmission.
-
Power consumption: TX: <3.5W; RX <6W
-
Product dimension: 98.5(L)*96.5(W)*23(H) mm
 |
