Product details

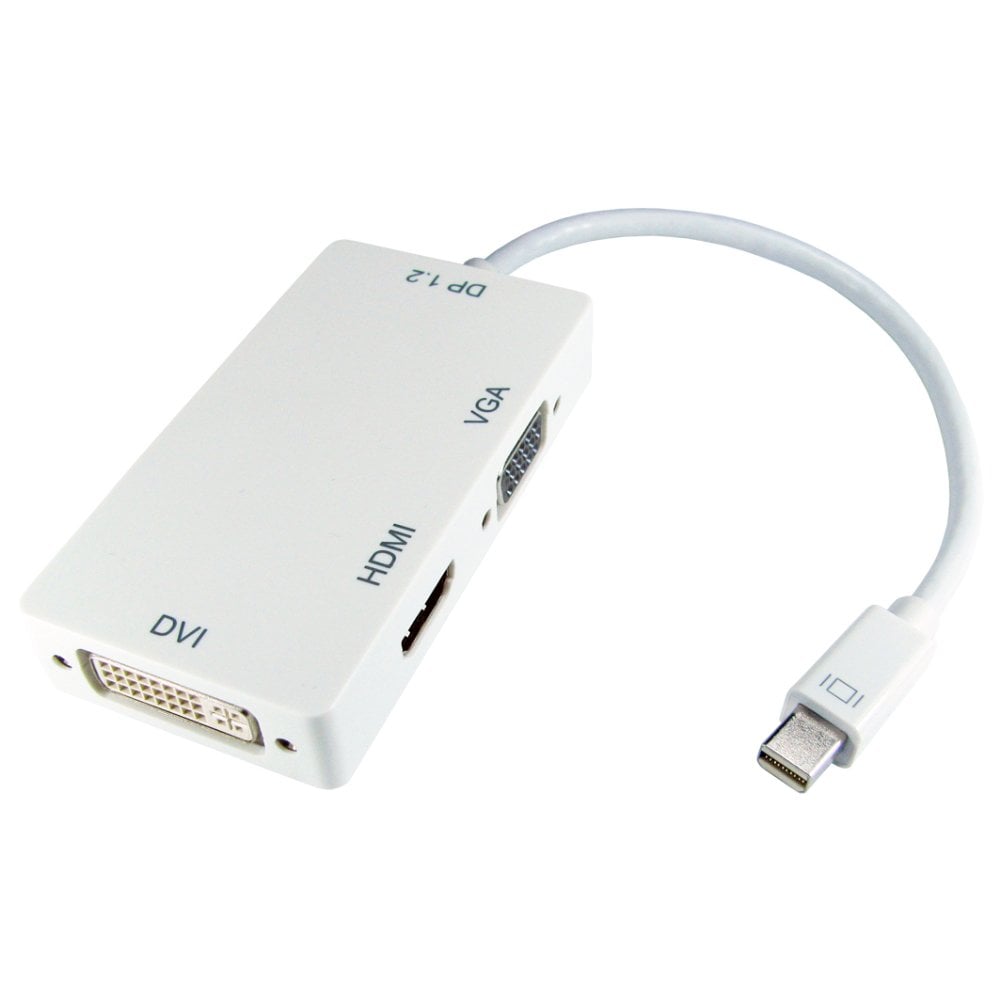

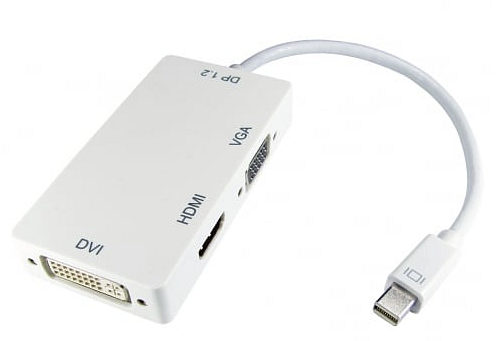

Mini DisplayPort To HDMI DVI and VGA Multi Adapter
The HDMINIDP-HDV02 will allow you to connect a high definition monitor, projector or LCD TV to a Surface Tablet, MacBook, MacBook Pro, MacBook Air or any tablet/laptop/PC with a Mini DisplayPort connection. It is easy and convenient to use, with three output ports: HDMI, DVI and VGA. You can use one of them at a time as needed.
Specification
-
Supports Mini DisplayPort v1.2 Dual-mode input
-
The HDMI port supports audio output
-
(Note: Mini DP on some iMac and MacBook series cannot support audio output)
-
Mini DP Port supports DP v1.2 (1.62 Gbps, 2.7 Gbps, 5.4 Gbps link rates)
-
HDMI Output supports the following resolutions:
-
- 4K x 2K, <24Hz, 25Hz, 30Hz>
-
- 1080p, <24Hz, 50Hz, 60Hz>
-
- 720p, 480p, 576i, 480i,
-
DVI-D Output can reach 1.65Gbps per channel bandwidth and the following resolutions:
-
- 1080p, <24Hz, 50Hz, 60Hz>
-
- 720p, 480p, 576i, 480i,
-
VGA Output can support a maximum resolution of 1920x1200, and the following resolutions:
-
1920x1080, 1650x1200, 1650x1050, 1400x1050, 1280x768, 1280x720, 1024x768, 800x600, 640x480
-
If two or more output ports are connected, only one output port can receive the input signal
-
The output priorities are:
-
1. DVI-D Port
-
2. HDMI Port
-
3. VGA Port
-
Automatic Power Management: Enters power saving mode automatically when output display is not connected
 |
|
|
|
|
|
|
|
|
